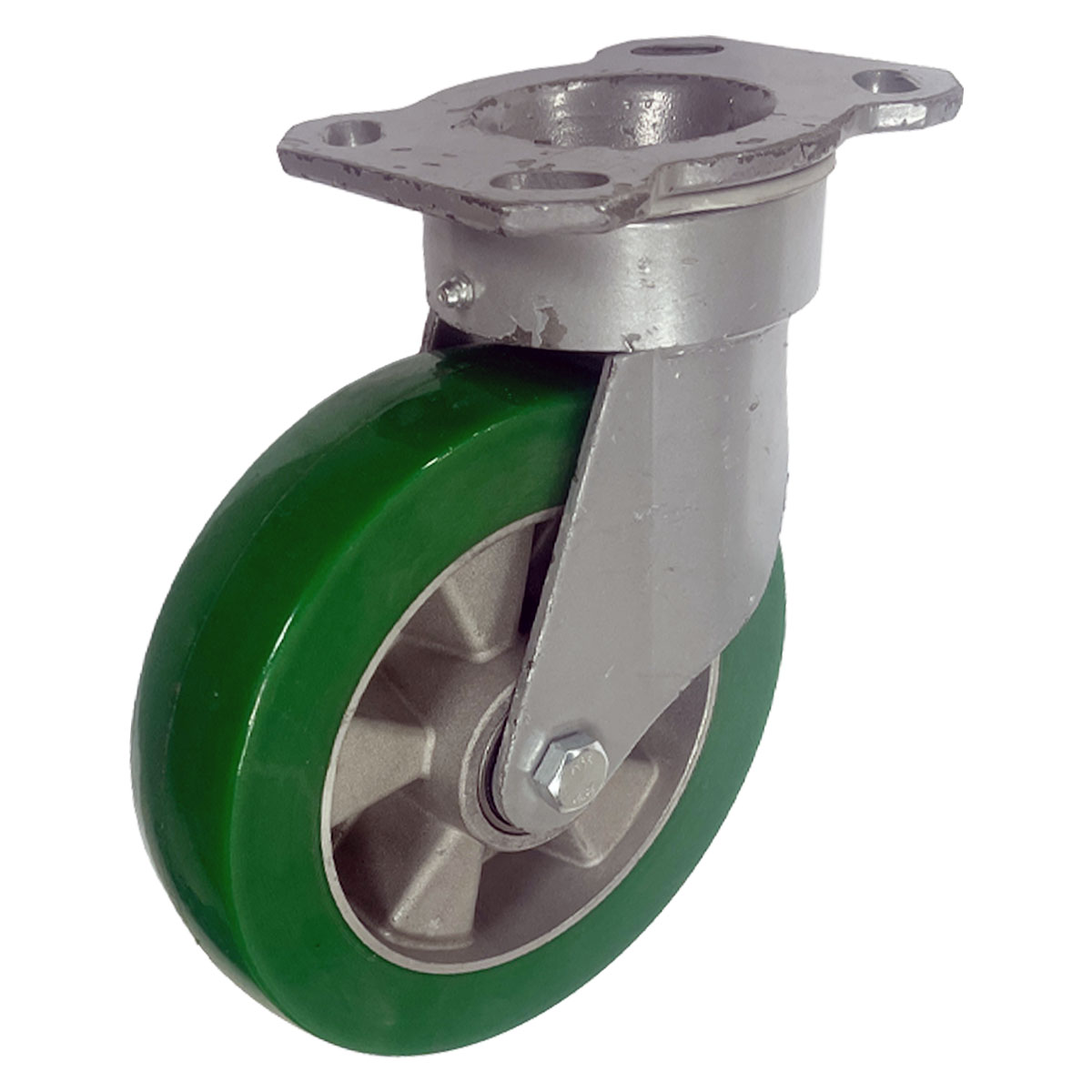

TH/THR Series (EPB)

R1.00

HOUSING: Fabricated steel painted finish thrust bearing swivel
WHEEL: PU on Aluminium, Precision double ball bearing
High temperature resistant
Item Code Wheel Size Plate/Bolt Hole Size
Hole Centre/Bolt Size
Total Height
Load Cap
TH6 -TW-PTB 2x150x50mm/60×20 149×110 120/105×80/60-M12 225mm 800Kg
THR6 -TW-PTB 2x150x50mm/60×20 149×110 120/105×80/60-M12 225mm 800Kg
Item Code Wheel Size Plate/Bolt Hole Size
Hole Centre/Bolt Size
Total Height
Load Cap
TH8 -TW-PTB 2x200x50mm/60×20 149×110 120/105×80/60-M12 270mm 1000Kg
THR8 -TW-PTB 2x200x50mm/60×20 149×110 120/105×80/60-M12 270mm 1000Kg
Item Code Wheel Size Plate/Bolt Hole Size
Hole Centre/Bolt Size
Total Height
Load Cap
TH10 -TW-PTB 2x250x50mm/60×20 149×110 120/105×80/60-M12 365mm 1100Kg
THR10 -TW-PTB 2x250x50mm/60×20 149×110 120/105×80/60-M12 365mm 1100Kg
